A set for a hydraulic log splitter Cone + hub + hydraulic motor
Regular price:
product unavailable
add to wish list
Description

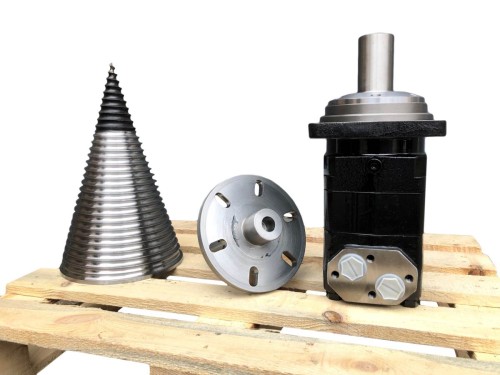

A set for a hydraulic log splitter Cone + hub + hydraulic motor
- cone with a diameter of 230 mm with a double thread and an replaceable tip
- hub for mounting on a hydraulic motor
- hub bore of 50 mm, an outer diameter of 80 mm (with a tolerance for bearing)
- full set of screws for mounting the cone included
- hydraulic motor SMV800, 34 [kW] and1880 [Nm]
We also have metal housings and other elements for the construction of the log splitter.
We can also mount a clamping for a backhoe loader or other machine according to the customer's guidelines.
Hydraulicmotor specifications:
Hydraulic motor shaft [mm] -- Cylindrical Ø50
Absorption capacity [cm3 / rev] -- 801
Maximum revolution [rpm] -- 250
Maximum torque [Nm] -- 1880
Maximum power [kW] -- 34
Maximum operating pressure [bar] -- 160
Maximum instantaneous pressure [bar] -- 180
Transmission width [mm] -- 280
Transmission height [mm] -- 300
Transmission length [mm] -- 320
Total weight [kg] -- 180
